Roller blinds » Siena


Discontinued product

All the technology and design of solar protection offered in a small space.

Siena is the internal roller blind for cover plate and sloping operation.

The exceptional flexibility allows different types of installation for various types of needs.

Siena responds to the needs of shading and total darkness.

Configurations

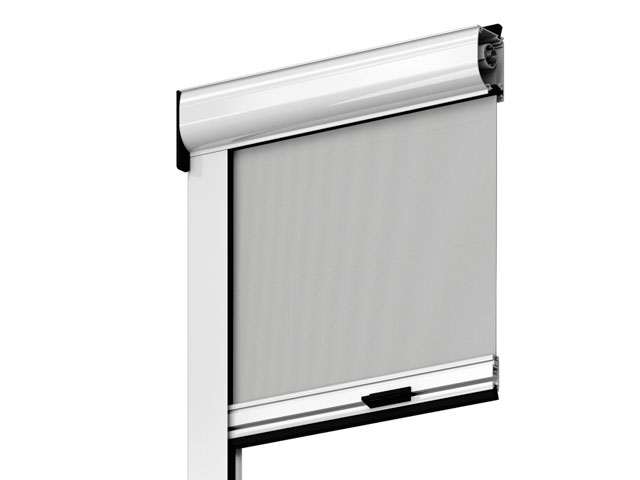

Cassette C40

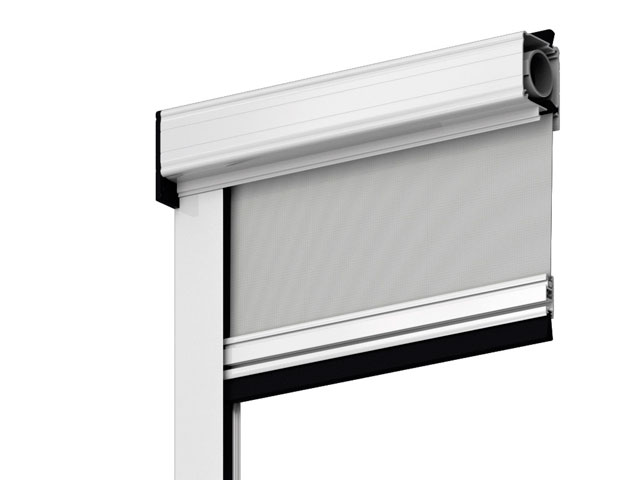

Cassette C46

Table

Roller tube Material: Extruded aluminium tube
Cassette Material / Finishing: Powder-coated extruded aluminium
Ispectable: No
Complements: Seal brush
Bottom rail Material / Finishing: Powder-coated extruded aluminium
Complements: Seal brush
Guides Material / Finishing: Powder-coated extruded aluminium
Ispectable: No
Screws Material: Stainless steel
Handlings Motor: Direct current DC a 12 o 24v
Manual: Frictioned spring
Brackets Material / Finishing: Galvanization
Installation types   Self-suporting
  Top fix with brackets
Guides installation   Front
  In front of the window
Dimensions Width (mm): 600 min - 1200 max
Height (mm): Depending of the fabric
C40 manual: 1400 max
C40 motor: 1000 max
C46 motor: 1200 max
Certification   13561

Notes

The contained information in this page may be imprecise because of possible technical modifications made after realization. The manufacturer reserves the right to make technical modifications without advance notice. Before making orders consult your manufacturer or retailer trusted. The roller blind is designed for the sun protection of the space where it is located. Every other use is inappropriate and dangerous. Marinello Tende cannot be considered responsible for possible damages caused by improper, erroneous and unreasonable use. The roller blind must be installed perpendicular to the horizontal area. When the danger of icing is present the roller blind cannot be operated, in case of strong wind it is necessary to wrap up the roller blind. The fabric can have folds that do not influence the proper functioning of the roller blind.
